# save("filename.pdf", fig; pt_per_unit=2)
# save("filename.png", fig; px_per_unit=0.5)
using CairoMakie
CairoMakie.activate!()

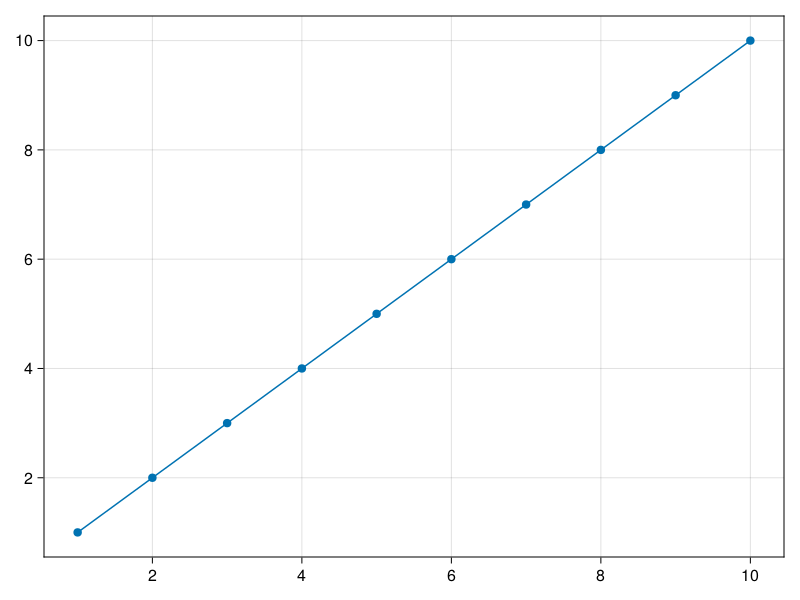

fig = scatterlines(1:10, 1:10)

1
2

fig, ax, pltobj = scatterlines(1:10)
pltobj.attributes

1
2
3
4
5

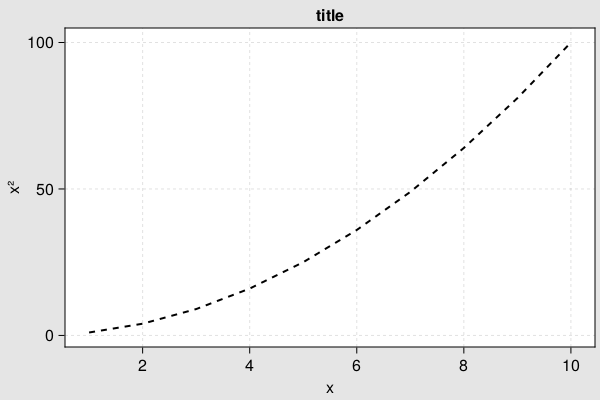

lines(1:10, (1:10).^2; color = :black, linewidth = 2, linestyle = :dash,
      figure = (; figure_padding = 5, resolution = (600, 400), font = "sans", backgroundcolor = :grey90,
                fontsize = 16),
      axis = (; xlabel = "x", ylabel = "x²", title = "title", xgridstyle = :dash, ygridstyle = :dash))
current_figure()

1
2
3
4
5
6
7

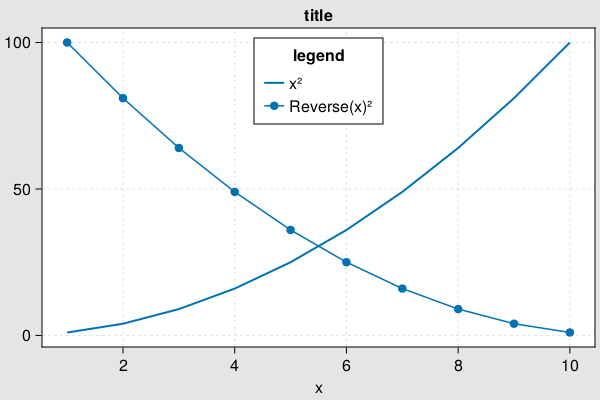

lines(1:10, (1:10).^2; label = "x²", linewidth = 2, linestyle = nothing,
      figure = (; figure_padding = 5, resolution = (600, 400), font = "sans", backgroundcolor = :grey90,
                fontsize = 16),
      axis=(; xlabel = "x", title = "title", xgridstyle = :dash, ygridstyle = :dash))
scatterlines!(1:10, (10:-1.0:1).^2; label = "Reverse(x)²")
axislegend("legend"; position = :ct)
current_figure()

1
2
3
4
5
6
7

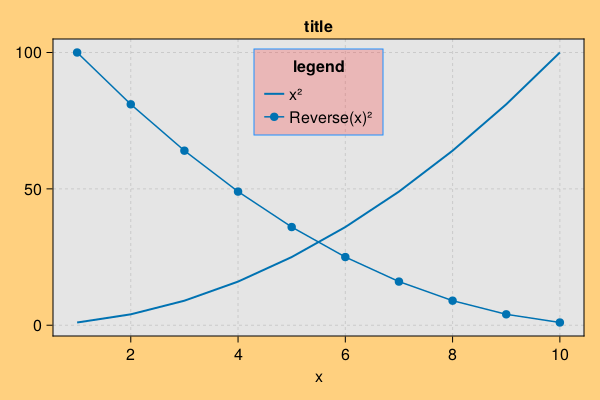

set_theme!(; resolution = (600, 400), backgroundcolor = (:orange, 0.5), fontsize = 16, font="sans",
           Axis = (backgroundcolor = :grey90, xgridstyle = :dash, ygridstyle = :dash),
           Legend = (bgcolor = (:red, 0.2), framecolor = :dodgerblue))
lines(1:10, (1:10).^2; label = "x²", linewidth = 2, linestyle = nothing, axis = (; xlabel = "x", title = "title"))
scatterlines!(1:10, (10:-1.0:1).^2; label = "Reverse(x)²")
axislegend("legend"; position = :ct)
current_figure()

1
2
3
4
5

using Random: seed!

seed!(28)
xyvals = randn(100, 3)
xyvals[1:5, :]

1
2
3
4
5
6
7
8
9

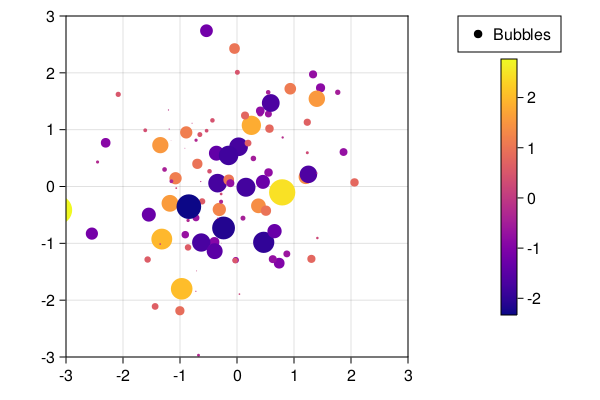

set_theme!()  # reset the default settings of Makie

fig, ax, pltobj = scatter(xyvals[:, 1], xyvals[:, 2]; color = xyvals[:, 3], label = "Bubbles",
                          colormap = :plasma, markersize = 15 * abs.(xyvals[:, 3]),
                          figure = (; resolution = (600, 400)), axis = (; aspect = DataAspect()))
limits!(-3, 3, -3, 3)
Legend(fig[1, 2], ax, valign = :top)
Colorbar(fig[1, 2], pltobj, height = Relative(3 / 4))
fig

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

seed!(123)
y =cumsum(randn(6, 6), dims = 2)

seed!(13)
xv = yv = LinRange(-3, 0.5, 20)
matrix =randn(20, 20)

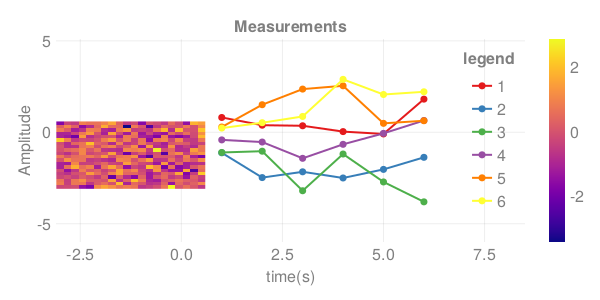

function demo_themes(y, xv, yv, matrix)
    fig, _ = series(y; labels = ["$i" for i = 1:6], markersize=10, color=:Set1, figure = (; resolution=(600, 300)),
                    axis = (; xlabel = "time(s)", ylabel = "Amplitude", title = "Measurements"))
    hmap = heatmap!(xv, yv, matrix; colormap = :plasma)
    limits!(-3.1, 8.5, -6, 5.1)
    axislegend("legend"; merge = true)
    Colorbar(fig[1, 2], hmap)
    fig
end

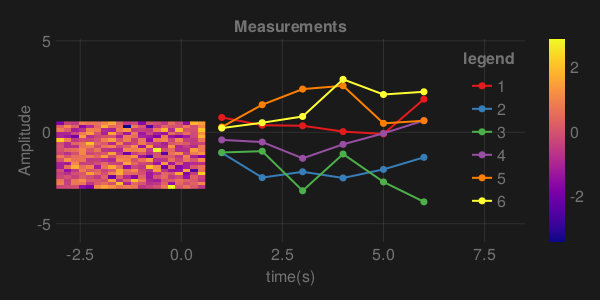

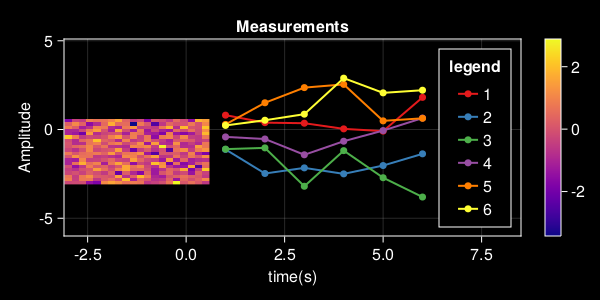

with_theme(theme_dark()) do
    demo_themes(y, xv, yv, matrix)
end

1
2
3

with_theme(theme_black()) do
    demo_themes(y, xv, yv, matrix)
end

1
2
3

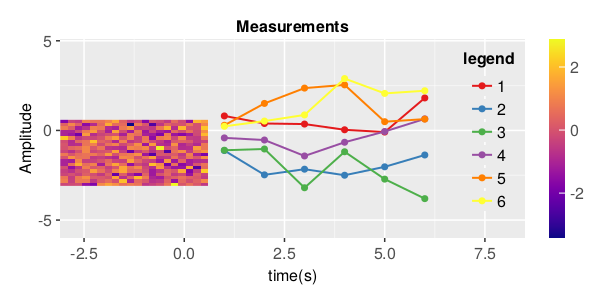

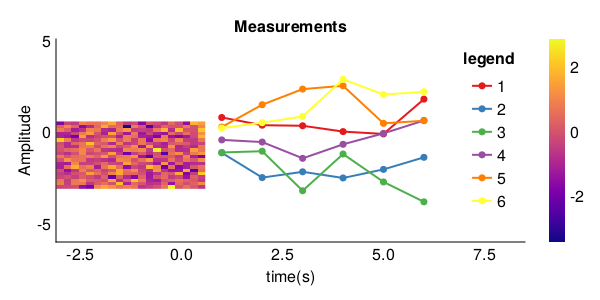

with_theme(theme_ggplot2()) do
    demo_themes(y, xv, yv, matrix)
end

1
2
3

with_theme(theme_minimal()) do
    demo_themes(y, xv, yv, matrix)
end

1
2
3

with_theme(theme_light()) do
    demo_themes(y, xv, yv, matrix)
end

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

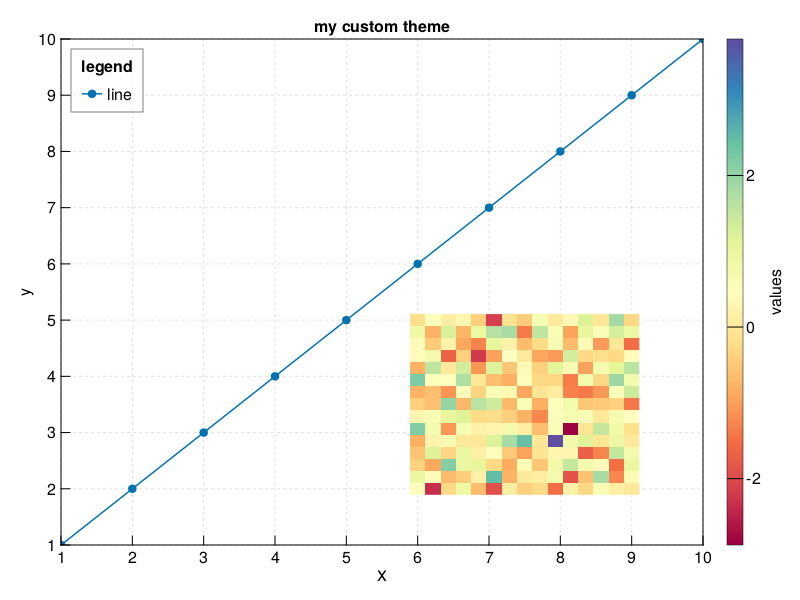

publication_theme() = Theme(fontsize = 16, font = "CMU Serif",
                            Axis = (xlabelsize = 20, xgridstyle = :dash, ygridstyle = :dash,
                                    xtickalign = 1, ytickalign = 1, yticksize = 10,
                                    xticksize = 10, xlabelpadding = -5, xlabel = "x", ylabel = "y"),
                            Legend = (framecolor = (:black, 0.5), bgcolor = (:white, 0.5)),
                            Colorbar = (ticksize = 16, tickalign = 1, spinewidth = 0.5), )

function plot_with_legend_and_colorbar()
    fig, ax, _ = scatterlines(1:10; label = "line")
    hm = heatmap!(ax, LinRange(6, 9, 15), LinRange(2, 5, 15), randn(15, 15); colormap = :Spectral_11)
    axislegend("legend"; position = :lt)
    Colorbar(fig[1, 2], hm, label = "values")
    ax.title = "my custom theme"
    fig
end

with_theme(plot_with_legend_and_colorbar, publication_theme())

1
2
3
4
5
6

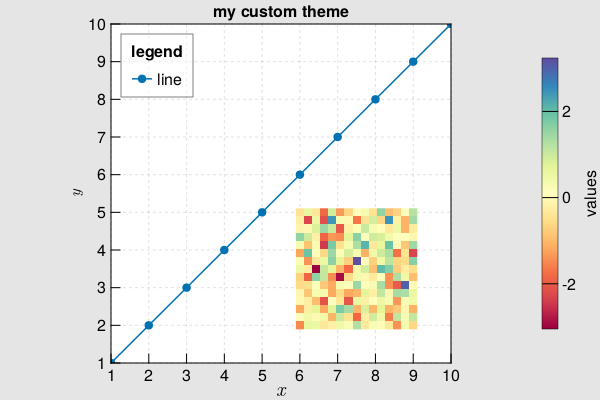

fig = (resolution = (600, 400), figure_padding = 1, backgroundcolor = :grey90)
ax = (; aspect = DataAspect(), xlabel = L"x", ylabel = L"y")
cbar = (; height = Relative(4 / 5))
with_theme(publication_theme(); fig..., Axis = ax, Colorbar = cbar) do
    plot_with_legend_and_colorbar()
end

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

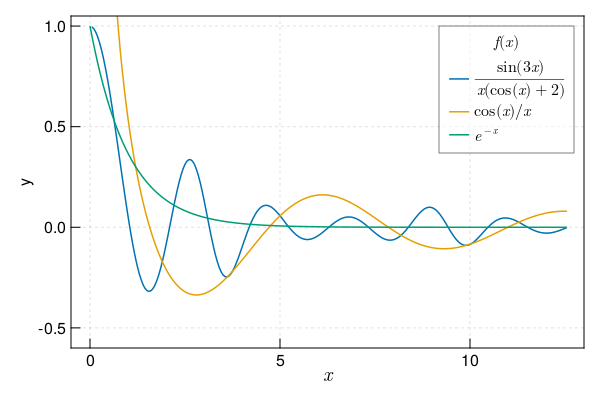

using LaTeXStrings

function LaTeX_Strings()
    x = 0:0.05:4π
    lines(x, x -> sin(3x) / (cos(x) + 2) / x; label = L"\frac{\sin(3x)}{x(\cos(x)+2)}",
          figure = (; resolution = (600, 400)), axis = (; xlabel = L"x"))
    lines!(x, x -> cos(x) / x; label = L"\cos(x)/x")
    lines!(x, x -> exp(-x); label = L"e^{−x}")
    limits!(-0.5, 13, -0.6, 1.05)
    axislegend(L"f(x)")
    current_figure()
end

with_theme(LaTeX_Strings, publication_theme())

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

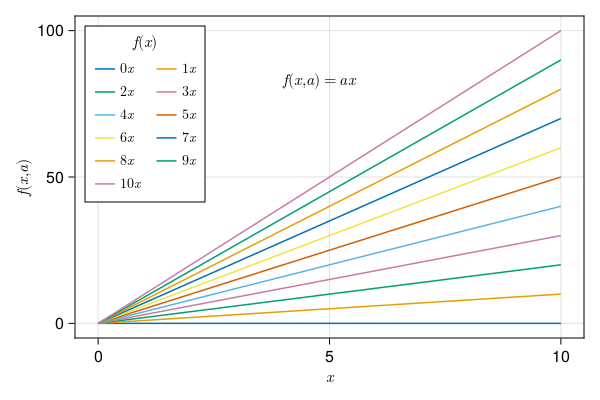

function multiple_lines()
    x = collect(0:10)
    fig = Figure(resolution = (600, 400), font = "CMU Serif")
    ax = Axis(fig[1, 1], xlabel = L"x", ylabel = L"f(x,a)")
    for i = 0:10
        lines!(ax, x, i .* x; label = latexstring("$(i) x"))
    end
    axislegend(L"f(x)"; position = :lt, nbanks = 2, labelsize = 14)
    text!(L"f(x,a) = ax", position = (4, 80))
    fig
end

multiple_lines()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

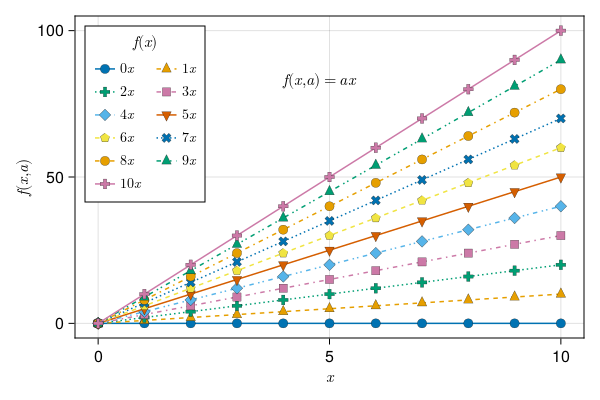

function multiple_scatters_and_lines()
    x = collect(0:10)
    cycle = Cycle([:color, :linestyle, :marker], covary=true)
    set_theme!(Lines = (cycle = cycle,), Scatter = (cycle = cycle,))
    fig = Figure(resolution = (600, 400), font = "CMU Serif")
    ax = Axis(fig[1, 1], xlabel = L"x", ylabel = L"f(x,a)")
    for i in x
        lines!(ax, x, i .* x; label = latexstring("$(i) x"))
        scatter!(ax, x, i .* x; markersize = 13, strokewidth = 0.25, label = latexstring("$(i) x"))
    end
    axislegend(L"f(x)"; merge = true, position = :lt, nbanks = 2, labelsize = 14)
    text!(L"f(x,a) = ax", position = (4, 80))
    set_theme!() # reset to default theme
    fig
end

multiple_scatters_and_lines()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

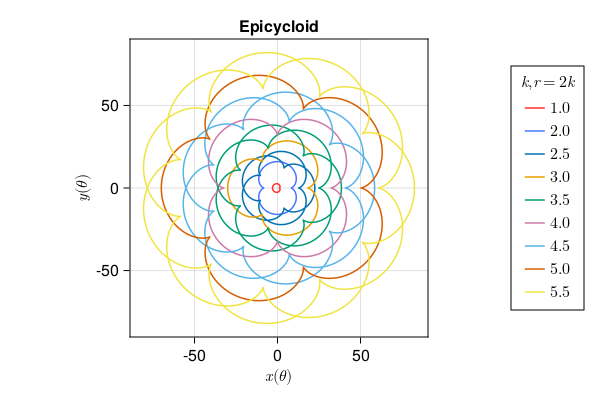

function set_colors_and_cycle()
    # Epicycloid lines
    x(r, k, θ) = r * (k .+ 1.0) .* cos.(θ) .- r * cos.((k .+ 1.0) .* θ)
    y(r, k, θ) = r * (k .+ 1.0) .* sin.(θ) .- r * sin.((k .+ 1.0) .* θ)
    θ = LinRange(0, 6.2π, 1000)
    axis = (; xlabel = L"x(\theta)", ylabel = L"y(\theta)", title = "Epicycloid", aspect = DataAspect())
    figure = (; resolution=(600, 400), font="CMU Serif")
    fig, ax, _ = lines(x(1, 1, θ), y(1, 1, θ); color = "firebrick1", label = L"1.0", axis = axis, figure = figure)
    lines!(ax, x(4, 2, θ), y(4, 2, θ); color = :royalblue1, label = L"2.0")
    for k = 2.5:0.5:5.5
            lines!(ax, x(2k, k, θ), y(2k, k, θ); label = latexstring("$(k)")) #cycle
    end
    Legend(fig[1, 2], ax, latexstring("k, r = 2k"), merge = true)
    fig
end

set_colors_and_cycle()

1
2
3
4
5
6
7

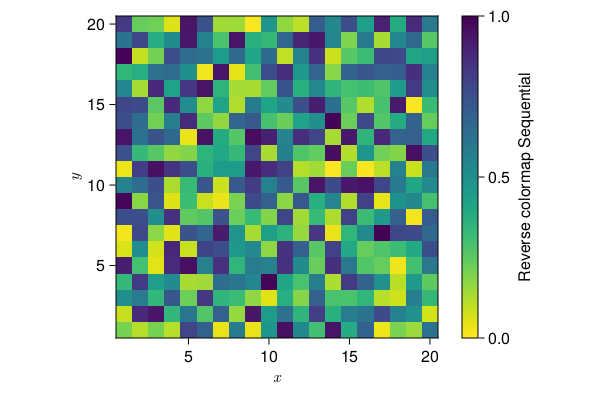

figure = (; resolution = (600, 400), font = "CMU Serif")
axis = (; xlabel = L"x", ylabel = L"y", aspect = DataAspect())
fig, ax, pltobj = heatmap(rand(20, 20); colorrange = (0, 1), colormap = Reverse(:viridis), axis = axis,
                          figure = figure)
Colorbar(fig[1, 2], pltobj, label = "Reverse colormap Sequential")
colsize!(fig.layout, 1, Aspect(1, 1.0))
fig

1
2
3
4
5
6
7
8
9

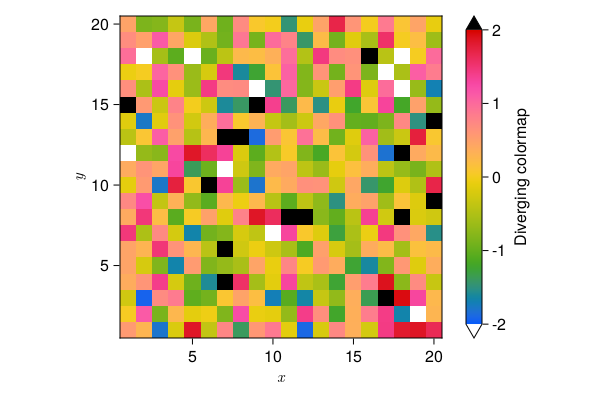

using ColorSchemes

figure = (; resolution = (600, 400), font = "CMU Serif")
axis = (; xlabel = L"x", ylabel = L"y", aspect = DataAspect())
fig, ax, pltobj = heatmap(randn(20, 20); colorrange = (-2, 2), colormap = "diverging_rainbow_bgymr_45_85_c67_n256",
                          highclip = :black, lowclip = :white, axis = axis, figure = figure)
Colorbar(fig[1, 2], pltobj, label = "Diverging colormap")
colsize!(fig.layout, 1, Aspect(1, 1.0))
fig

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

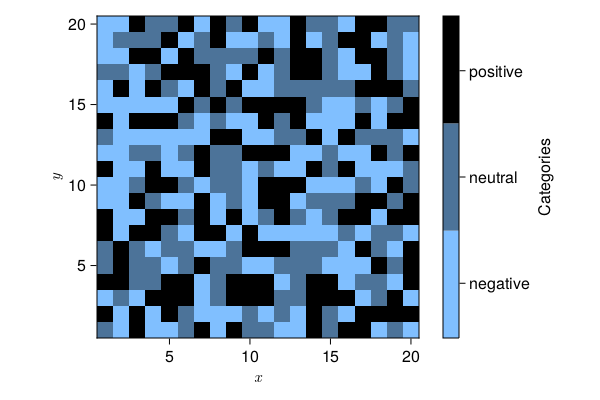

using Colors, ColorSchemes

figure = (; resolution = (600, 400), font = "CMU Serif")
axis = (; xlabel = L"x", ylabel = L"y", aspect = DataAspect())
# cmap = ColorScheme(range(colorant"red", colorant"green", length = 3))
mycmap = ColorScheme([RGB{Float64}(i, 1.5i, 2i) for i in [0.0, 0.25, 0.35, 0.5]])
fig, ax, pltobj = heatmap(rand(-1:1, 20, 20);
                          colormap = cgrad(mycmap, 3, categorical = true, rev = true), # cgrad and Symbol, mygrays,
                          axis = axis, figure = figure)
cbar = Colorbar(fig[1, 2], pltobj, label = "Categories")
cbar.ticks = ([-0.66, 0, 0.66], ["negative", "neutral", "positive"])
colsize!(fig.layout, 1, Aspect(1, 1.0))
fig

1
2
3
4
5
6
7
8

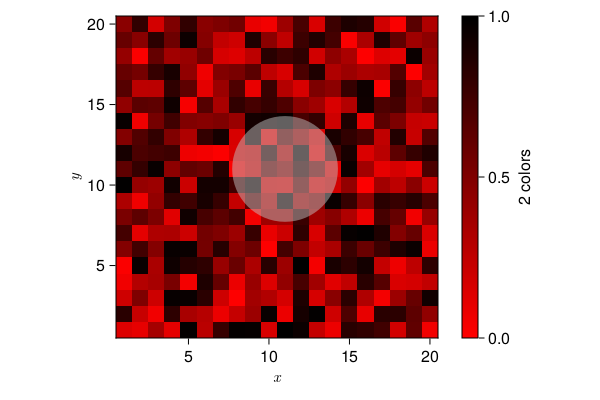

figure = (; resolution = (600, 400), font = "CMU Serif")
axis = (; xlabel = L"x", ylabel = L"y", aspect = DataAspect())
fig, ax, pltobj = heatmap(rand(20, 20); colorrange = (0, 1), colormap = ["red", "black"], axis = axis,
                          figure = figure)
scatter!(ax, [11], [11], color = ("#C0C0C0", 0.5), markersize = 150)
Colorbar(fig[1, 2], pltobj, label = "2 colors")
colsize!(fig.layout, 1, Aspect(1, 1.0))
fig

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

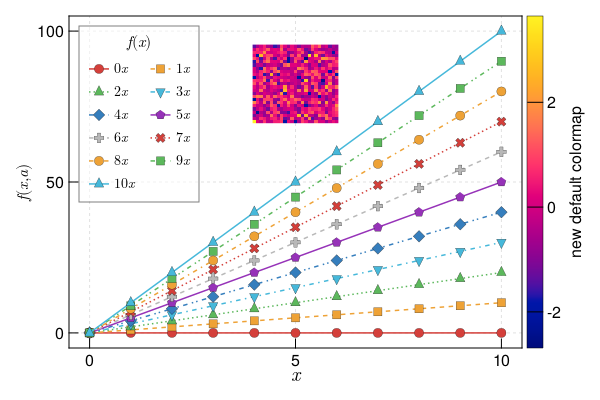

function new_cycle_theme()
    # https://nanx.me/ggsci/reference/pal_locuszoom.html
    my_colors = ["#D43F3AFF", "#EEA236FF", "#5CB85CFF", "#46B8DAFF", "#357EBDFF", "#9632B8FF", "#B8B8B8FF"]
    cycle = Cycle([:color, :linestyle, :marker], covary = true) # alltogether
    my_markers = [:circle, :rect, :utriangle, :dtriangle, :diamond, :pentagon, :cross, :xcross]
    my_linestyle = [nothing, :dash, :dot, :dashdot, :dashdotdot]
    Theme(fontsize = 16, font = "CMU Serif", colormap = :linear_bmy_10_95_c78_n256,
          palette = (color = my_colors, marker = my_markers, linestyle = my_linestyle),
          Lines = (cycle = cycle,), Scatter = (cycle = cycle,),
                   Axis = (xlabelsize = 20, xgridstyle = :dash, ygridstyle = :dash,
                           xtickalign = 1, ytickalign = 1, yticksize = 10, xticksize = 10,
                           xlabelpadding = -5, xlabel = "x", ylabel = "y"),
                   Legend = (framecolor = (:black, 0.5), bgcolor = (:white, 0.5)),
                   Colorbar = (ticksize = 16, tickalign = 1, spinewidth = 0.5))
end

function scatters_and_lines()
    x = collect(0:10)
    xh = LinRange(4, 6, 25)
    yh = LinRange(70, 95, 25)
    h = randn(25, 25)
    fig = Figure(resolution = (600, 400), font = "CMU Serif")
    ax = Axis(fig[1, 1], xlabel = L"x", ylabel = L"f(x,a)")
    for i in x
        lines!(ax, x, i .* x; label = latexstring("$(i) x"))
        scatter!(ax, x, i .* x; markersize = 13, strokewidth = 0.25, label = latexstring("$(i) x"))
    end
    hm = heatmap!(xh, yh, h)
    axislegend(L"f(x)"; merge = true, position = :lt, nbanks = 2, labelsize = 14)
    Colorbar(fig[1, 2], hm, label = "new default colormap")
    limits!(ax, -0.5, 10.5, -5, 105)
    colgap!(fig.layout, 5)
    fig
end

with_theme(scatters_and_lines, new_cycle_theme())

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

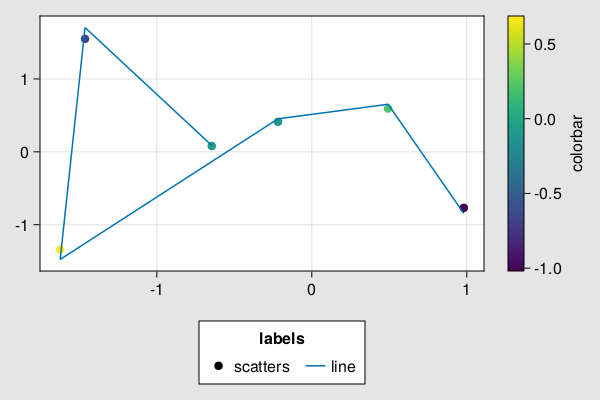

function first_layout()
    seed!(123)
    x, y, z = randn(6), randn(6), randn(6)
    fig = Figure(resolution = (600, 400), backgroundcolor = :grey90)
    ax = Axis(fig[1, 1], backgroundcolor = :white)
    pltobj = scatter!(ax, x, y; color = z, label="scatters")
    lines!(ax, x, 1.1y; label = "line")
    Legend(fig[2, 1:2], ax, "labels", orientation = :horizontal)
    Colorbar(fig[1, 2], pltobj, label = "colorbar")
    fig
end

first_layout()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

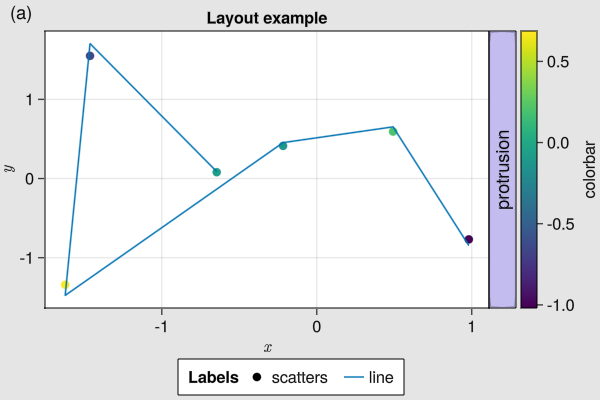

function first_layout_fixed()
    seed!(123)
    x, y, z = randn(6), randn(6), randn(6)
    fig = Figure(figure_padding = (0, 3, 5, 2), resolution = (600, 400), backgroundcolor = :grey90,
                 font = "CMU Serif")
    ax = Axis(fig[1, 1], xlabel = L"x", ylabel = L"y", title = "Layout example", backgroundcolor = :white)
    pltobj = scatter!(ax, x, y; color = z, label = "scatters")
    lines!(ax, x, 1.1y, label = "line")
    Legend(fig[2, 1:2], ax, "Labels", orientation = :horizontal, tellheight = true, titleposition = :left)
    Colorbar(fig[1, 2], pltobj, label = "colorbar")
    # additional aesthetics
    Box(fig[1, 1, Right()], color = (:slateblue1, 0.35))
    Label(fig[1, 1, Right()], "protrusion", fontsize = 18, rotation = pi / 2, padding = (3, 3, 3, 3))
    Label(fig[1, 1, TopLeft()], "(a)", fontsize = 18, padding = (0, 3, 8, 0))
    colgap!(fig.layout, 5)
    rowgap!(fig.layout, 5)
    fig
end

first_layout_fixed()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

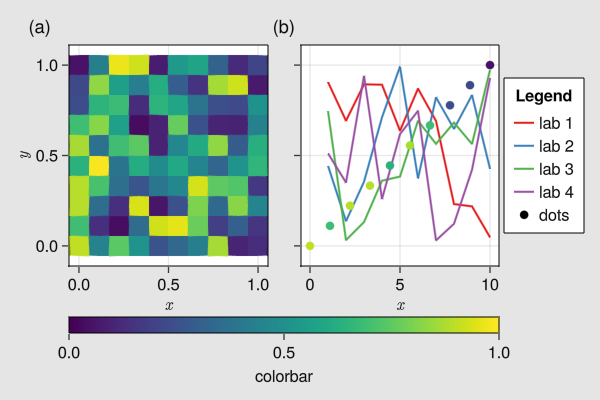

function complex_layout_double_axis()
    seed!(123)
    x = LinRange(0, 1, 10)
    y = LinRange(0, 1, 10)
    z = rand(10, 10)
    fig = Figure(resolution = (600, 400), font = "CMU Serif", backgroundcolor = :grey90)
    ax1 = Axis(fig, xlabel = L"x", ylabel=L"y")
    ax2 = Axis(fig, xlabel = L"x")
    heatmap!(ax1, x, y, z; colorrange = (0, 1))
    series!(ax2, abs.(z[1:4, :]); labels = ["lab $i" for i = 1:4], color = :Set1_4)
    hm = scatter!(10x, y; color = z[1, :], label= "dots", colorrange = (0, 1))
    hideydecorations!(ax2, ticks = false, grid = false)
    linkyaxes!(ax1, ax2)
    #layout
    fig[1, 1] = ax1
    fig[1, 2] = ax2
    Label(fig[1, 1, TopLeft()], "(a)", textsize = 18, padding = (0, 6, 8, 0))
    Label(fig[1, 2, TopLeft()], "(b)", textsize = 18, padding = (0, 6, 8, 0))
    Colorbar(fig[2, 1:2], hm, label = "colorbar", vertical = false, flipaxis = false)
    Legend(fig[1, 3], ax2, "Legend")
    colgap!(fig.layout, 5)
    rowgap!(fig.layout, 5)
    fig
end

complex_layout_double_axis()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

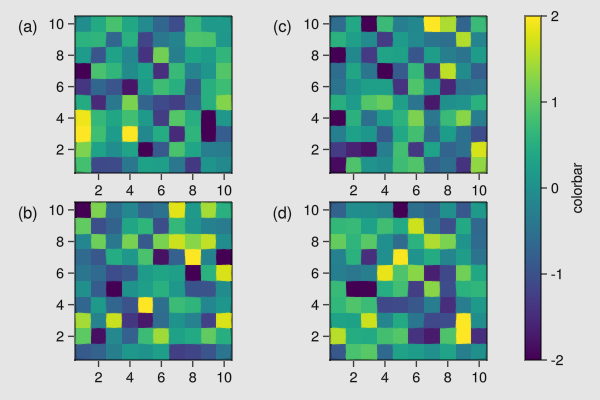

function squares_layout()
    seed!(123)
    letters = reshape(collect('a':'d'), (2, 2))
    fig = Figure(resolution = (600, 400), fontsize = 14, font = "CMU Serif", backgroundcolor = :grey90)
    axs = [Axis(fig[i, j], aspect = DataAspect()) for i = 1:2, j = 1:2]
    hms = [heatmap!(axs[i, j], randn(10, 10), colorrange = (-2, 2)) for i = 1:2, j = 1:2]
    Colorbar(fig[1:2, 3], hms[1], label = "colorbar")
    [Label(fig[i, j, TopLeft()], "($(letters[i, j]))", textsize = 16, padding = (-2, 0, -20, 0)) for i = 1:2, j = 1:2]
    colgap!(fig.layout, 5)
    rowgap!(fig.layout, 5)
    fig
end

squares_layout()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

using Dates

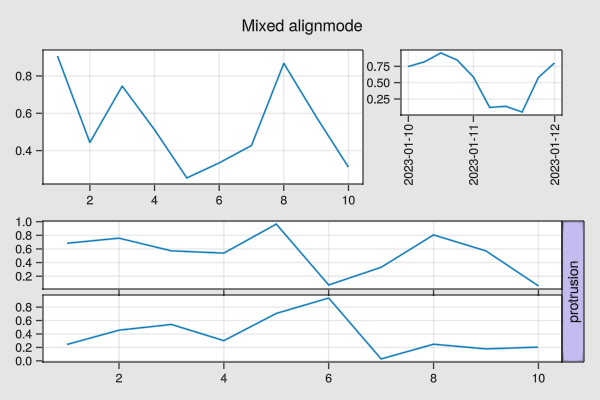

function mixed_mode_layout()
    seed!(123)
    longlabels = ["$(today() − Day(1))", "$(today())", "$(today() + Day(1))"]
    fig = Figure(resolution = (600, 400), fontsize = 12, backgroundcolor = :grey90, font = "CMU Serif")
    ax1 = Axis(fig[1, 1])
    ax2 = Axis(fig[1, 2], xticklabelrotation = pi / 2, alignmode = Mixed(bottom = 0), xticks = ([1, 5, 10],
               longlabels))
    ax3 = Axis(fig[2, 1:2])
    ax4 = Axis(fig[3, 1:2])
    axs = [ax1, ax2, ax3, ax4]
    [lines!(ax, 1:10, rand(10)) for ax in axs]
    hidexdecorations!(ax3; ticks = false, grid = false)
    Box(fig[2:3, 1:2, Right()], color = (:slateblue1, 0.35))
    Label(fig[2:3, 1:2, Right()], "protrusion", rotation = pi / 2, textsize = 14, padding = (3, 3, 3, 3))
    Label(fig[1, 1:2, Top()], "Mixed alignmode", textsize = 16, padding = (0, 0, 15, 0))
    colsize!(fig.layout, 1, Auto(2))
    rowsize!(fig.layout, 2, Auto(0.5))
    rowsize!(fig.layout, 3, Auto(0.5))
    rowgap!(fig.layout, 1, 15)
    rowgap!(fig.layout, 2, 0)
    colgap!(fig.layout, 5)
    fig
end

mixed_mode_layout()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

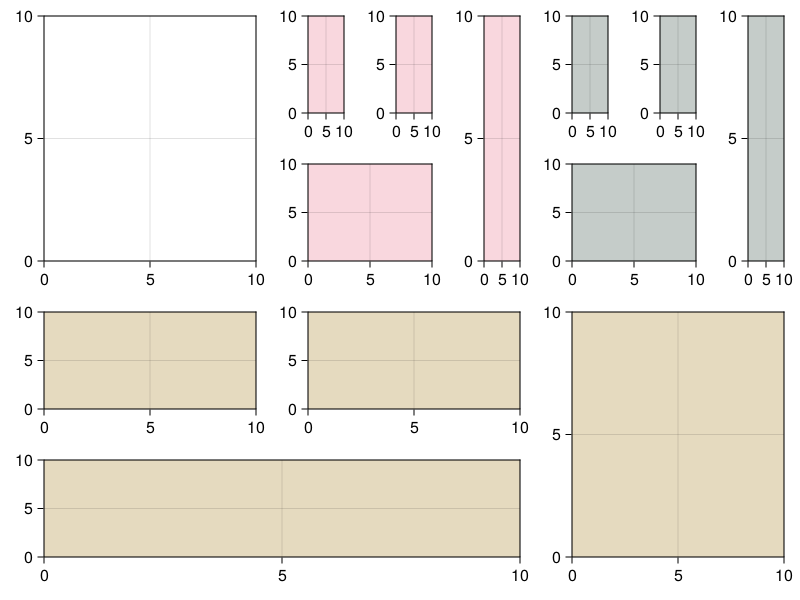

function nested_sub_plot!(fig)
    color = rand(RGBf)
    ax1 = Axis(fig[1, 1], backgroundcolor = (color, 0.25))
    ax2 = Axis(fig[1, 2], backgroundcolor = (color, 0.25))
    ax3 = Axis(fig[2, 1:2], backgroundcolor = (color, 0.25))
    ax4 = Axis(fig[1:2, 3], backgroundcolor = (color, 0.25))
    return (ax1, ax2, ax3, ax4)
end

function main_figure()
    fig = Figure()
    Axis(fig[1, 1])
    nested_sub_plot!(fig[1, 2])
    nested_sub_plot!(fig[1, 3])
    nested_sub_plot!(fig[2, 1:3])
    fig
end

main_figure()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

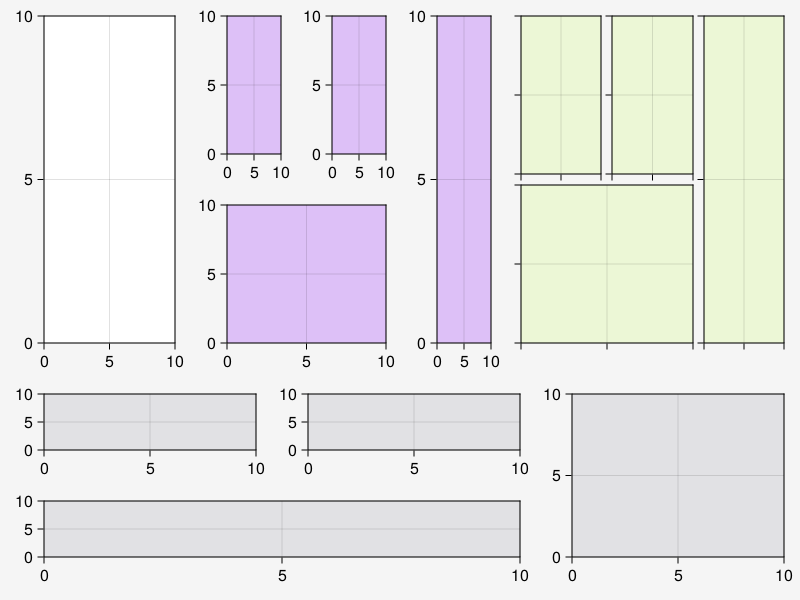

function nested_Grid_Layouts()
    fig = Figure(backgroundcolor = RGBf(0.96, 0.96, 0.96))
    ga = fig[1, 1] = GridLayout()
    gb = fig[1, 2] = GridLayout()
    gc = fig[1, 3] = GridLayout()
    gd = fig[2, 1:3] = GridLayout()
    gA = Axis(ga[1, 1])
    nested_sub_plot!(gb)
    axsc = nested_sub_plot!(gc)
    nested_sub_plot!(gd)
    [hidedecorations!(axsc[i], grid = false, ticks = false) for i = 1:length(axsc)]
    colgap!(gc, 5)
    rowgap!(gc, 5)
    rowsize!(fig.layout, 2, Auto(0.5))
    colsize!(fig.layout, 1, Auto(0.5))
    fig
end

nested_Grid_Layouts()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

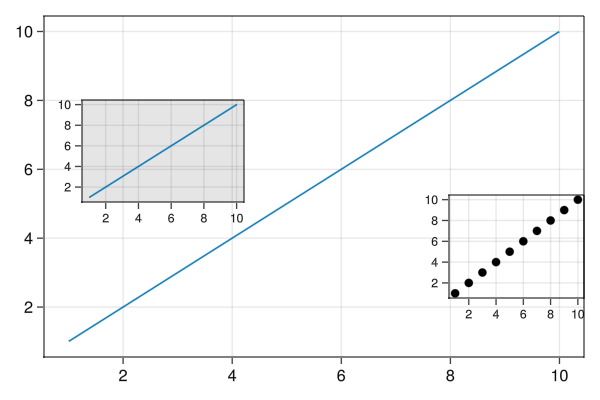

function add_box_inset(fig; left = 100, right = 250, bottom = 200, top = 300, bgcolor = :grey90)
    inset_box = Axis(fig, bbox = BBox(left, right, bottom, top), xticklabelsize = 12, yticklabelsize = 12,
                     backgroundcolor = bgcolor)
    # bring content upfront
    translate!(inset_box.scene, 0, 0, 10)
    elements = keys(inset_box.elements)
    filtered = filter(ele -> ele != :xaxis && ele != :yaxis, elements)
    foreach(ele -> translate!(inset_box.elements[ele], 0, 0, 9), filtered)
    return inset_box
end

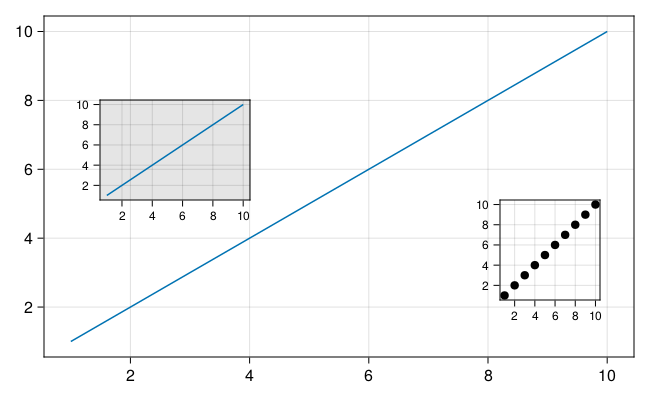

function figure_box_inset()
    fig = Figure(resolution = (650, 400))
    ax = Axis(fig[1, 1], backgroundcolor = :white)
    inset_ax1 = add_box_inset(fig; left = 100, right = 250, bottom = 200, top = 300, bgcolor = :grey90)
    inset_ax2 = add_box_inset(fig; left = 500, right = 600, bottom = 100, top = 200, bgcolor = (:white, 0.65))
    lines!(ax, 1:10)
    lines!(inset_ax1, 1:10)
    scatter!(inset_ax2, 1:10, color = :black)
    fig
end

figure_box_inset()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

function add_axis_inset(; pos = fig[1, 1], halign = 0.1, valign = 0.5,width = Relative(0.5),
                        height = Relative(0.35), bgcolor = :lightgray)
    inset_box = Axis(pos, width = width, height = height, halign = halign, valign = valign,
                     xticklabelsize = 12, yticklabelsize = 12, backgroundcolor = bgcolor)
    # bring content upfront
    translate!(inset_box.scene, 0, 0, 10)
    return inset_box
end

function figure_axis_inset()
    fig = Figure(resolution = (600, 400))
    ax = Axis(fig[1, 1], backgroundcolor = :white)
    inset_ax1 = add_axis_inset(; pos = fig[1, 1], halign = 0.1, valign = 0.65, width=Relative(0.3),
                               height = Relative(0.3), bgcolor = :grey90)
    inset_ax2 = add_axis_inset(; pos = fig[1, 1], halign = 1, valign = 0.25, width = Relative(0.25),
                               height = Relative(0.3), bgcolor = (:white, 0.65))
    lines!(ax, 1:10)
    lines!(inset_ax1, 1:10)
    scatter!(inset_ax2, 1:10, color = :black)
    fig
end

figure_axis_inset()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

using GLMakie
GLMakie.activate!()

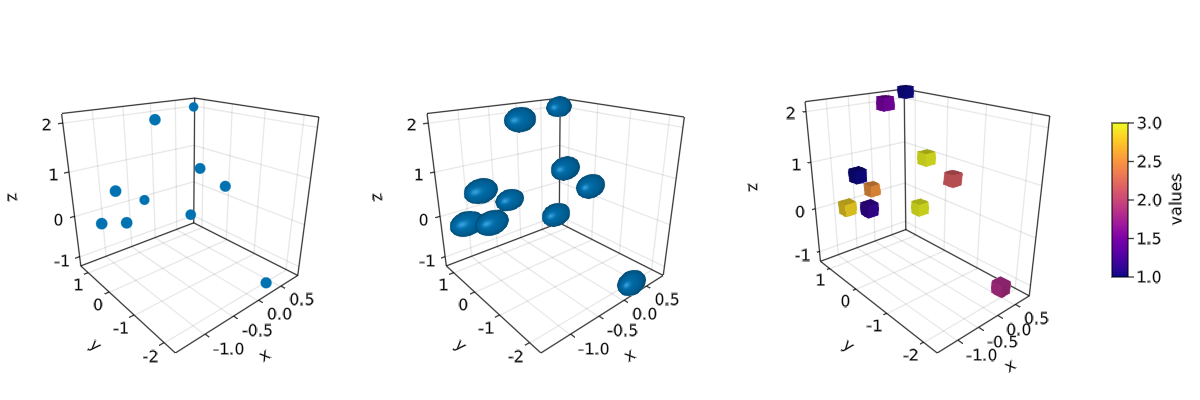

function scatters_in_3D()
    seed!(123)
    xyz = randn(10, 3)
    x, y, z = xyz[:, 1], xyz[:, 2], xyz[:, 3]
    fig = Figure(resolution = (1200, 400))
    ax1 = Axis3(fig[1, 1]; aspect = (1, 1, 1), perspectiveness = 0.5)
    ax2 = Axis3(fig[1, 2]; aspect = (1, 1, 1), perspectiveness = 0.5)
    ax3 = Axis3(fig[1, 3]; aspect = :data, perspectiveness = 0.5)
    scatter!(ax1, x, y, z; markersize = 50)
    meshscatter!(ax2, x, y, z; markersize = 0.25)
    hm = meshscatter!(ax3, x, y, z; markersize = 0.25, marker = FRect3D(Vec3f0(0), Vec3f0(1)),
                      color = 1:size(xyz)[2], colormap = :plasma, transparency = false)
    Colorbar(fig[1, 4], hm, label = "values", height = Relative(0.5))
    fig
end

scatters_in_3D()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

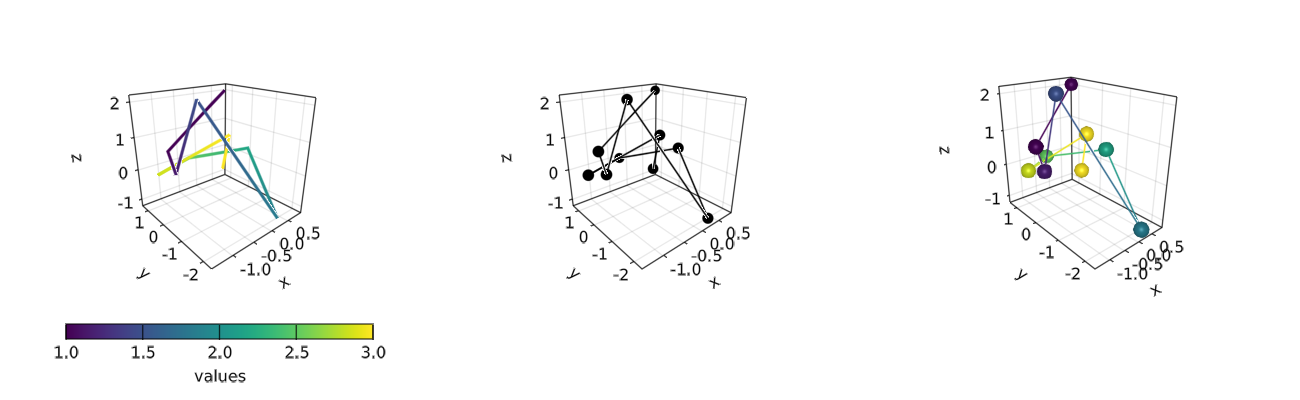

function lines_in_3D()
    seed!(123)
    xyz = randn(10, 3)
    x, y, z = xyz[:, 1], xyz[:, 2], xyz[:, 3]
    fig = Figure(resolution = (1300, 400))
    ax1 = Axis3(fig[1, 1]; aspect = (1, 1, 1), perspectiveness = 0.5)
    ax2 = Axis3(fig[1, 2]; aspect = (1, 1, 1), perspectiveness = 0.5)
    ax3 = Axis3(fig[1, 3]; aspect = :data, perspectiveness = 0.5)
    lines!(ax1, x, y, z; color = 1:size(xyz)[2], linewidth = 3)
    scatterlines!(ax2, x, y, z; markersize = 50)
    hm = meshscatter!(ax3, x, y, z; markersize = 0.2, color = 1:size(xyz)[2])
    lines!(ax3, x, y, z; color = 1:size(xyz)[2])
    Colorbar(fig[2, 1], hm; label="values", height = 15, vertical = false, flipaxis = false,
             ticksize = 15, tickalign = 1, width = Relative(3.55 / 4))
    fig
end

lines_in_3D()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

function peaks(; n = 49)
    x = LinRange(-3, 3, n)
    y = LinRange(-3, 3, n)
    a = 3 * (1 .- x') .^ 2 .* exp.(-(x' .^ 2) .- (y .+ 1) .^ 2)
    b = 10 * (x' / 5 .- x' .^ 3 .- y .^ 5) .* exp.(-x' .^ 2 .- y .^ 2)
    c = 1 / 3 * exp.(-(x' .+ 1) .^ 2 .- y .^ 2)
    return (x, y, a .- b .- c)
end

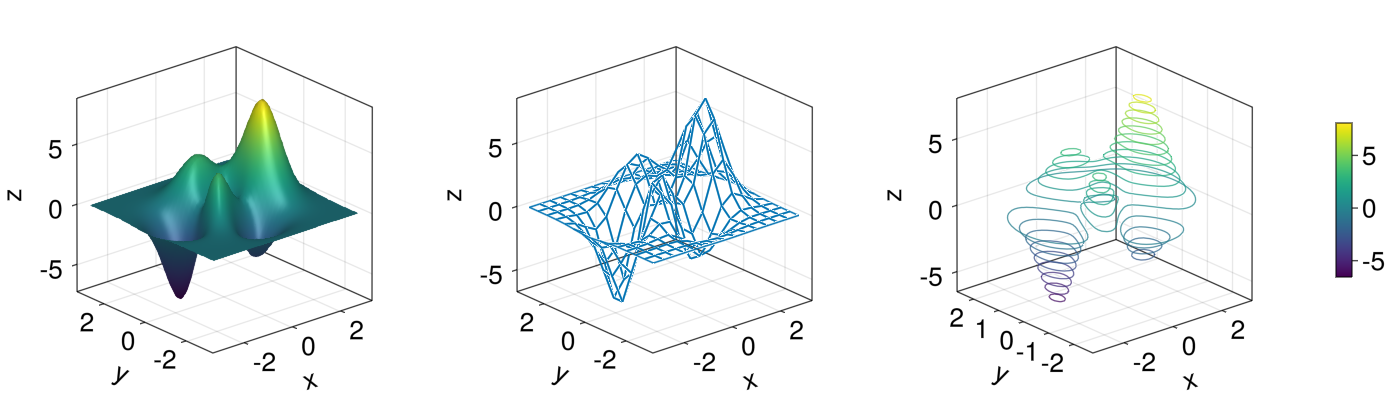

function plot_peaks_function()
    x, y, z = peaks()
    x2, y2, z2 = peaks(; n = 15)
    fig = Figure(resolution = (1300, 400), fontsize = 26)
    axs = [Axis3(fig[1, i]; aspect = (1, 1, 1)) for i = 1:3]
    hm = surface!(axs[1], x, y, z)
    wireframe!(axs[2], x2, y2, z2)
    contour3d!(axs[3], x, y, z; levels = 20)
    Colorbar(fig[1, 4], hm, height = Relative(0.5))
    fig
end

plot_peaks_function()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

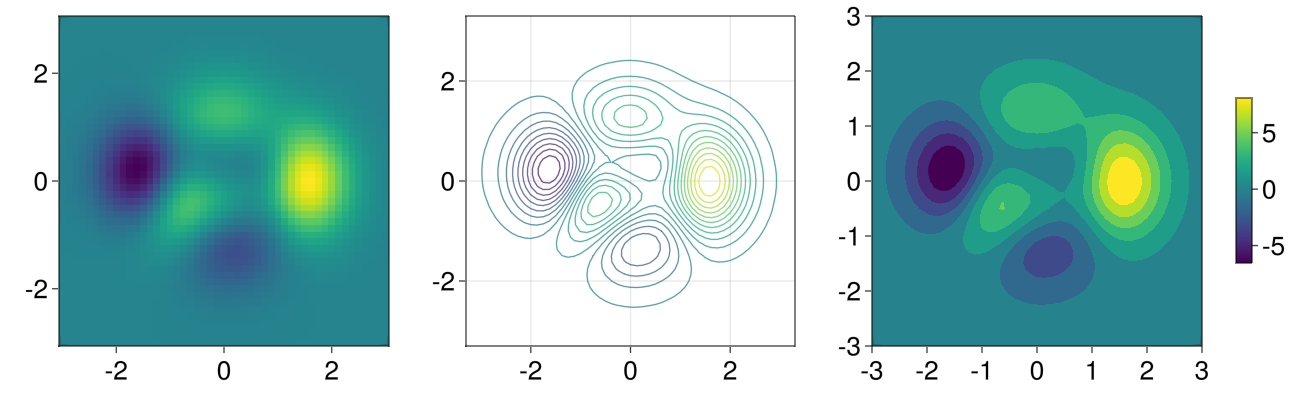

function heatmap_contour_and_contourf()
    x, y, z = peaks()
    fig = Figure(resolution = (1300, 400), fontsize = 26)
    axs = [Axis(fig[1, i]; aspect = DataAspect()) for i = 1:3]
    hm = heatmap!(axs[1], x, y, z)
    contour!(axs[2], x, y, z; levels = 20)
    contourf!(axs[3], x, y, z)
    Colorbar(fig[1, 4], hm, height = Relative(0.5))
    fig
end

heatmap_contour_and_contourf()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

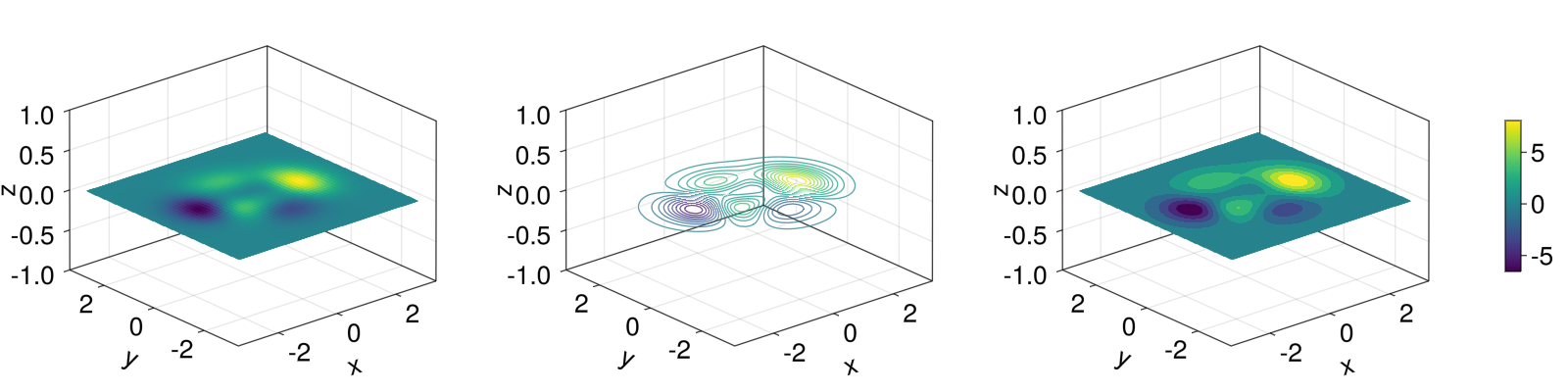

function heatmap_contour_and_contourf_in_a_3d_plane()
    x, y, z = peaks()
    fig = Figure(resolution = (1600, 400), fontsize = 26)
    axs = [Axis3(fig[1, i]) for i = 1:3]
    hm = heatmap!(axs[1], x, y, z)
    contour!(axs[2], x, y, z; levels = 20)
    contourf!(axs[3], x, y, z)
    Colorbar(fig[1, 4], hm, height = Relative(0.5))
    fig
end

heatmap_contour_and_contourf_in_a_3d_plane()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

 using TestImages

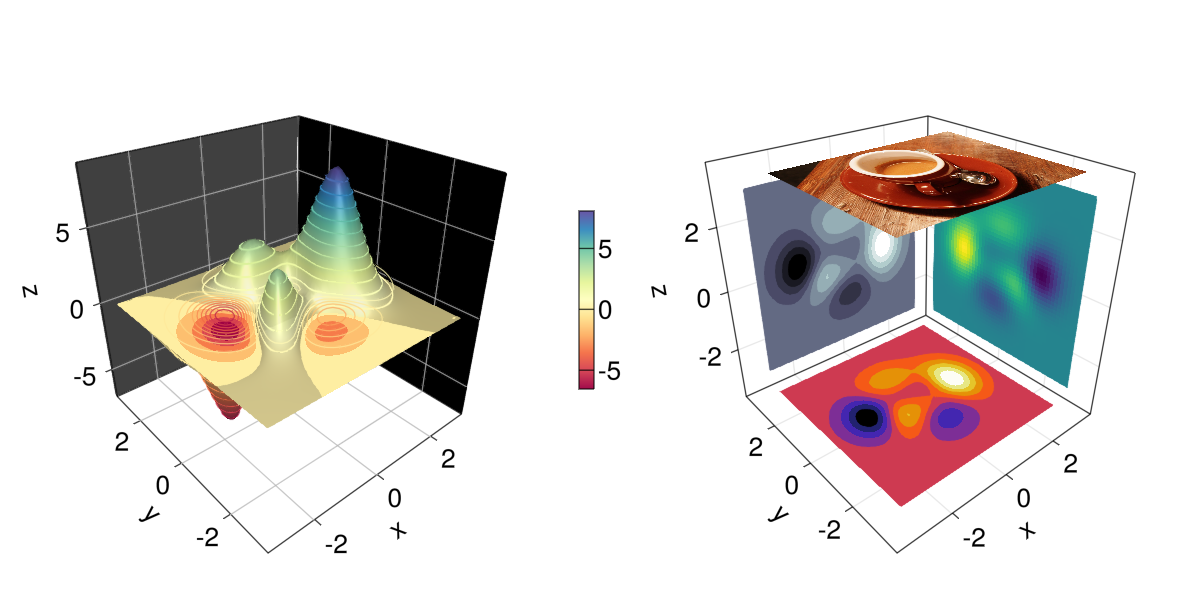

 function mixing_surface_contour3d_contour_and_contourf()
    img = testimage("coffee.png")
    x, y, z = peaks()
    cmap = :Spectral_11
    fig = Figure(resolution = (1200, 600), fontsize = 26)
    ax1 = Axis3(fig[1, 1]; aspect = (1, 1, 1), elevation=pi / 6, xzpanelcolor=(:black, 0.75), perspectiveness = 0.5,
                yzpanelcolor = :black, zgridcolor = :grey70, ygridcolor = :grey70, xgridcolor = :grey70)
    ax2 = Axis3(fig[1, 3]; aspect = (1, 1, 1), elevation = pi / 6, perspectiveness = 0.5)
    hm = surface!(ax1, x, y, z; colormap = (cmap, 0.95), shading = true)
    contour3d!(ax1, x, y, z .+ 0.02; colormap = cmap, levels = 20, linewidth = 2)
    xmin, ymin, zmin = minimum(ax1.finallimits[])
    xmax, ymax, zmax = maximum(ax1.finallimits[])
    contour!(ax1, x, y, z; colormap = cmap, levels = 20, transformation = (:xy, zmax))
    contourf!(ax1, x, y, z; colormap = cmap, transformation = (:xy, zmin))
    Colorbar(fig[1, 2], hm, width = 15, ticksize = 15, tickalign = 1, height = Relative(0.35))
    # transformations into planes
    heatmap!(ax2, x, y, z; colormap = :viridis, transformation = (:yz, 3.5))
    contourf!(ax2, x, y, z; colormap = :CMRmap, transformation = (:xy, -3.5))
    contourf!(ax2, x, y, z; colormap = :bone_1, transformation = (:xz, 3.5))
    image!(ax2, -3 .. 3, -3 .. 2, rotr90(img); transformation = (:xy, 3.8))
    xlims!(ax2, -3.8, 3.8)
    ylims!(ax2, -3.8, 3.8)
    zlims!(ax2, -3.8, 3.8)
    fig
end

mixing_surface_contour3d_contour_and_contourf()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

using LinearAlgebra

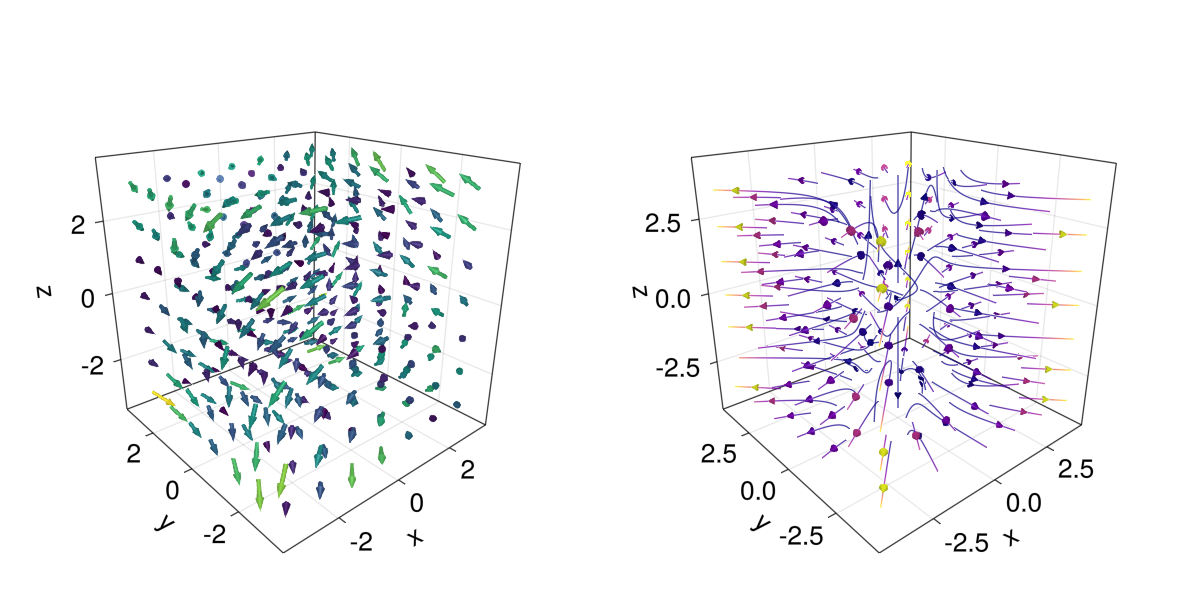

function arrows_and_streamplot_in_3d()
    ps = [Point3f0(x, y, z) for x = -3:1:3 for y = -3:1:3 for z = -3:1:3]
    ns = map(p -> 0.1 * rand() * Vec3f0(p[2], p[3], p[1]), ps)
    lengths = norm.(ns)
    flowField(x, y, z) = Point(-y + x * (-1 + x^2 + y^2)^2, x + y * (-1 + x^2 + y^2)^2, z + x * (y - z^2))
    fig = Figure(resolution = (1200, 600), fontsize = 26)
    axs = [Axis3(fig[1, i]; aspect =( 1, 1, 1), perspectiveness = 0.5) for i = 1:2]
    arrows!(axs[1], ps, ns, color = lengths, arrowsize = Vec3f0(0.2, 0.2, 0.3), linewidth = 0.1)
    streamplot!(axs[2], flowField, -4 .. 4, -4 .. 4, -4 .. 4, colormap = :plasma, gridsize = (7, 7),
                arrow_size = 0.25, linewidth = 1)
    fig
end

arrows_and_streamplot_in_3d()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

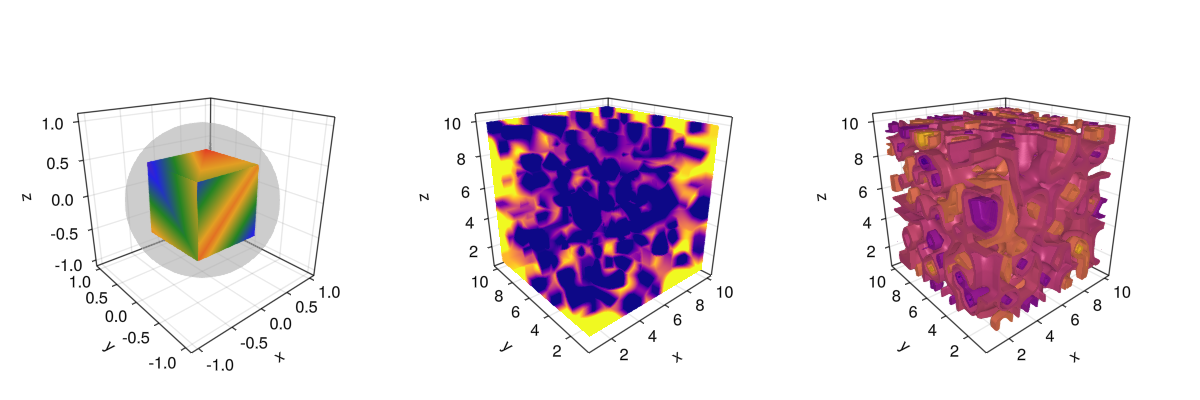

using GeometryBasics

function mesh_volume_contour()
    # mesh objects
    rectMesh = FRect3D(Vec3f0(-0.5), Vec3f0(1))
    recmesh = GeometryBasics.mesh(rectMesh)
    sphere = Sphere(Point3f0(0), 1)
    # https://juliageometry.github.io/GeometryBasics.jl/stable/primitives/
    spheremesh = GeometryBasics.mesh(Tesselation(sphere, 64))
    # uses 64 for tesselation, a smoother sphere
    colors = [rand() for v in recmesh.position]
    # cloud points for volume
    x = y = z = 1:10
    vals = randn(10, 10, 10)
    fig = Figure(resolution = (1200, 400))
    axs = [Axis3(fig[1, i]; aspect = (1, 1, 1), perspectiveness = 0.5) for i = 1:3]
    mesh!(axs[1], recmesh; color = colors, colormap = :rainbow, shading = false)
    mesh!(axs[1], spheremesh; color = (:white, 0.25), transparency = true)
    volume!(axs[2], x, y, z, vals; colormap = Reverse(:plasma))
    contour!(axs[3], x, y, z, vals; colormap = Reverse(:plasma))
    fig
end

mesh_volume_contour()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

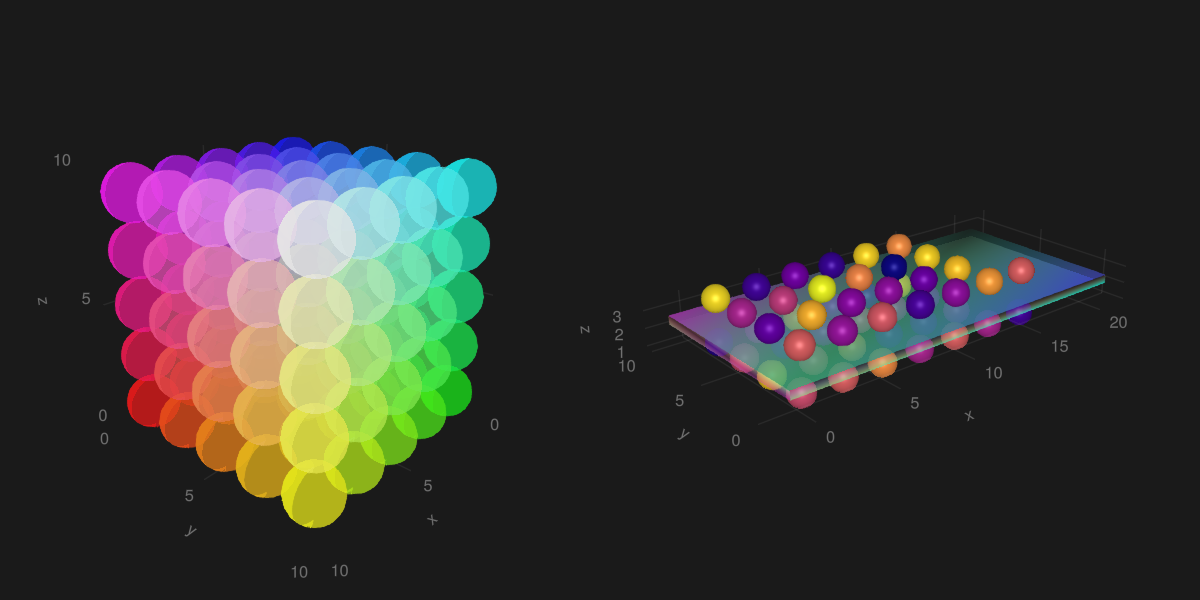

using GeometryBasics, ColorSchemes

seed!(123)
spheresGrid = [Point3f0(i, j, k) for i in 1:2:10 for j in 1:2:10 for k in 1:2:10]
colorSphere = [RGBA(i * 0.1, j * 0.1, k * 0.1, 0.75) for i in 1:2:10 for j in 1:2:10 for k in 1:2:10]
spheresPlane = [Point3f0(i, j, k) for i in 1:2.5:20 for j in 1:2.5:10 for k in 1:2.5:4]
cmap = get(colorschemes[:plasma], LinRange(0, 1, 50))
colorsPlane = cmap[rand(1:50,50)]
rectMesh = FRect3D(Vec3f0(-1, -1, 2.1), Vec3f0(22, 11, 0.5))
recmesh = GeometryBasics.mesh(rectMesh)
colors = [RGBA(rand(4)...) for v in recmesh.position]

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

function grid_spheres_and_rectangle_as_plate()
    fig = with_theme(theme_dark()) do
        fig = Figure(resolution = (1200, 600))
        ax1 = Axis3(fig[1, 1]; aspect = :data, perspectiveness = 0.5, azimuth = 0.72)
        ax2 = Axis3(fig[1, 2]; aspect = :data, perspectiveness = 0.5)
        meshscatter!(ax1, spheresGrid; color = colorSphere, markersize = 1, shading = false)
        meshscatter!(ax2, spheresPlane; color = colorsPlane, markersize = 0.75,
                     lightposition = Vec3f0(10, 5, 2), ambient = Vec3f0(0.95, 0.95, 0.95), backlight = 1.0f0)
        mesh!(recmesh; color = colors, colormap = :rainbow, shading = false)
        limits!(ax1, 0, 10, 0, 10, 0, 10)
        fig
    end
    fig
end

grid_spheres_and_rectangle_as_plate()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

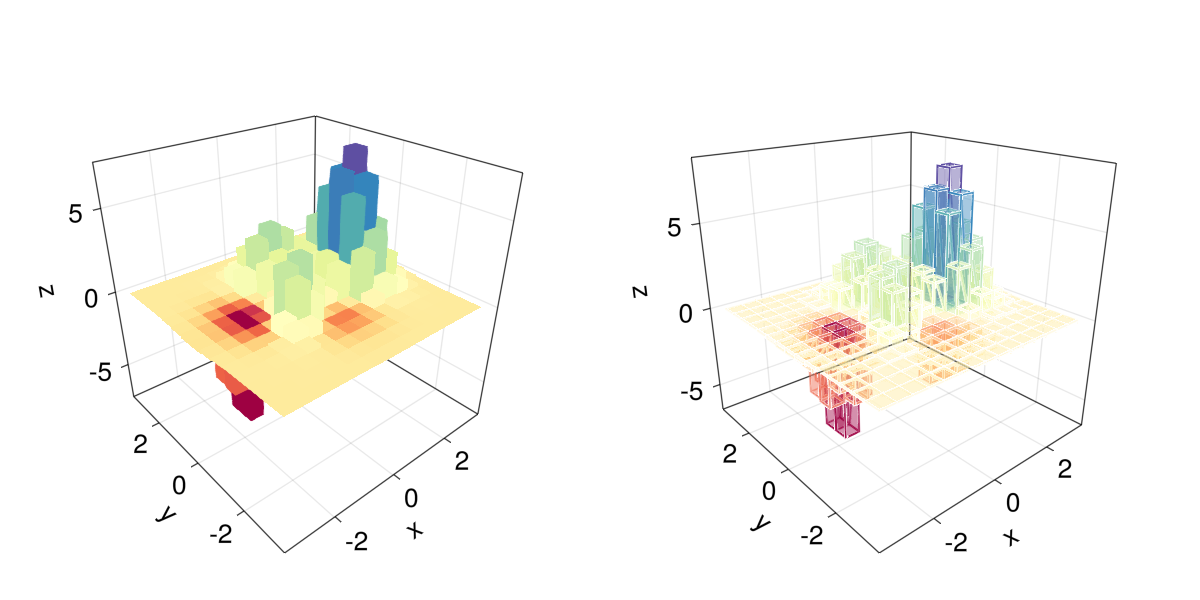

x, y, z = peaks(; n = 15)
δx = (x[2] - x[1]) / 2
δy = (y[2] - y[1]) / 2
cbarPal = :Spectral_11
ztmp = (z .- minimum(z)) ./ (maximum(z .- minimum(z)))
cmap = get(colorschemes[cbarPal], ztmp)
cmap2 = reshape(cmap, size(z))
ztmp2 = abs.(z) ./ maximum(abs.(z)) .+ 0.15

function histogram_or_bars_in_3d()
    fig= Figure(resolution = (1200, 600), fontsize = 26)
    ax1 = Axis3(fig[1, 1]; aspect = (1, 1, 1), elevation = π/6, perspectiveness= 0.5)
    ax2 = Axis3(fig[1, 2]; aspect = (1, 1, 1), perspectiveness = 0.5)
    rectMesh = FRect3D(Vec3f0(-0.5, -0.5, 0), Vec3f0(1, 1, 1))
    meshscatter!(ax1, x, y, 0 * z, marker = rectMesh, color = z[:], markersize = Vec3f0.(2δx, 2δy, z[:]),
                 colormap = :Spectral_11, shading = false)
    limits!(ax1, -3.5, 3.5, -3.5, 3.5, -7.45, 7.45)
    meshscatter!(ax2, x, y, 0 * z, marker = rectMesh, color = z[:], markersize = Vec3f0.(2δx, 2δy, z[:]),
                 colormap = (:Spectral_11, 0.25), shading = false, transparency = true)
    for (idx, i) in enumerate(x), (idy, j) in enumerate(y)
        rectMesh = FRect3D(Vec3f0(i - δx, j - δy, 0), Vec3f0(2δx, 2δy, z[idx, idy]))
        recmesh = GeometryBasics.mesh(rectMesh)
        lines!(ax2, recmesh; color = (cmap2[idx, idy], ztmp2[idx, idy]))
    end
    fig
end

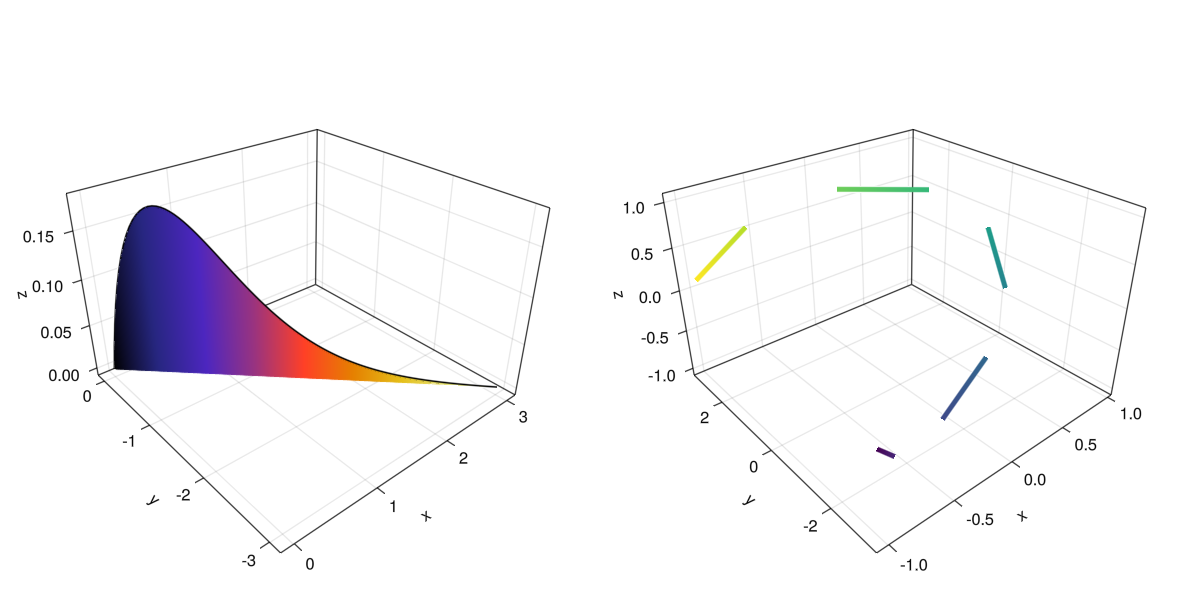

histogram_or_bars_in_3d()
